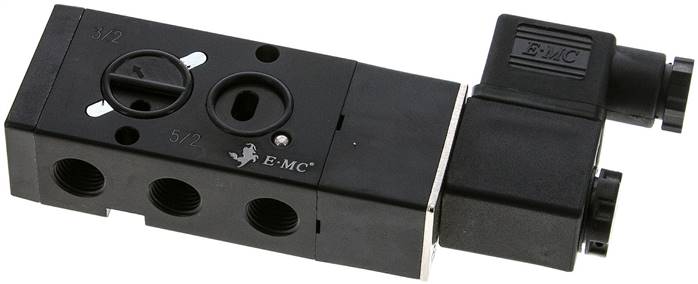

V 5231-08MG-24VAC (EMC) 3/2- and 5/2-way NAMUR solenoid valve G1/4", 24 V AC

Genuine EMC V 5231-08MG-24VAC – V 5231-08MG-24VAC (EMC) 3/2- and 5/2-way NAMUR solenoid valve G1/4", 24 V AC. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: V 5231-08MG-24VAC
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC V 5231-08MG-24VAC – V 5231-08MG-24VAC (EMC) 3/2- and 5/2-way NAMUR solenoid valve G1/4", 24 V AC. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: V 5231-08MG-24VAC
• Brand: EMC
• Product: V 5231-08MG-24VAC (EMC) 3/2- and 5/2-way NAMUR solenoid valve G1/4", 24 V AC

Trusted by engineers across the UK, this V 5231-08MG-24VAC (EMC) 3/2- and 5/2-way NAMUR solenoid valve G1/4", 24 V AC is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: aluminum, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1.5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec.

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Structural shape solenoid coil:
T (plug size 1)

Service life:
min. 12 million switching cycles

Advantages:
Simply by rotating the seal, the valve can be changed between 3/2-way and 5/2-way function
Economical, as the same valve can be used for single-acting drives.

Information:
These valves are always supplied with a solenoid coil and a connector plug. Control voltage 24 V AC function 5/2-way (spring return) or 3/2-way, NC (spring return) Thread (1x) G 1/4" Thread exhaust air (2x) G 1/4" Nominal width [mm] 5.6 flow [l/min] 1800 or 1000 Power consumption (AC) [VA] 5 Spare solenoid coil MAG T 24VAC Weight 330 g / pcs GTIN 4050571822309 Customs duty number 84812090 RoHS compliant Yes Manufacturer EMC
