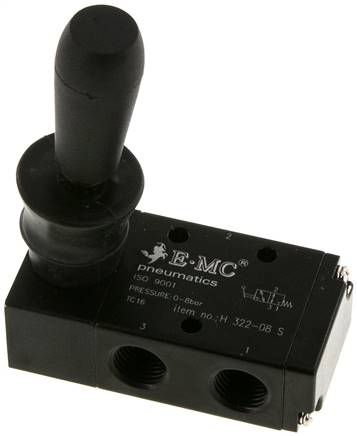

H 322-08 S (EMC) 3/2-way hand lever valve, spring return, G 1/4"

Genuine EMC H 322-08 S – H 322-08 S (EMC) 3/2-way hand lever valve, spring return, G 1/4". Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: H 322-08 S
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC H 322-08 S – H 322-08 S (EMC) 3/2-way hand lever valve, spring return, G 1/4". Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: H 322-08 S
• Brand: EMC
• Product: H 322-08 S (EMC) 3/2-way hand lever valve, spring return, G 1/4"

Trusted by engineers across the UK, this H 322-08 S (EMC) 3/2-way hand lever valve, spring return, G 1/4" is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: aluminum, seals: NBR

Temperature range:
-5 to +60 °C

Operating pressure:
0 to 8 bar

Media:
oiled and unoiled filtered compressed air

Pressure input:
Possible on every connection function spring return Thread G1 (2x) G 1/4" Thread exhaust air G1 (1x) G 1/4" Nominal width [mm] 4.5 flow [l/min] 800 A [mm] 68.7 B [mm] 35 C [mm] 22 D [mm] 28.7 E [mm] 18.7 F [mm] 20 H [mm] 4.3 J [mm] 24 K [mm] 90 M [mm] 16.5 N [mm] 22.5 O [mm] 28.7 P [mm] 1.5 W [mm] 0 Weight 170 g / pcs GTIN 4050571349875 Customs duty number 84812090 RoHS compliant Yes Manufacturer EMC
