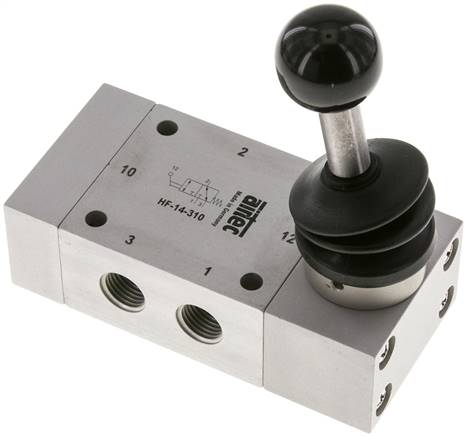

Airtec | HF 14 310 | 3/2-Way | Airtec Pneumatic Component | 1/4"

Item description

Materials:
Body and slider: Aluminum, internal parts: Aluminum, stainless steel, hand lever: Stainless steel, seals: POM / NBR

Temperature range:
-10 to +70 °C

Media:
oiled and unoiled filtered compressed air

Pressure input:
Possible on every connection

Optional:
ATEX approval -X Version Standard function spring return Thread (2x) G 1/4" Thread exhaust air (1x) G 1/4" Nominal width [mm] 9 flow [l/min] 1580 Operating pressure [bar] 0 - 12 A [mm] 50 B [mm] 30 C [mm] 44 D [mm] 36 E [mm] 5.5 F [mm] 30 G [mm] 46 H [mm] 112 I [mm] 37 L [mm] 104 M [mm] 22 Weight 490 g / pcs GTIN 4050571359171 Customs duty number 84812090 RoHS compliant Yes Manufacturer Airtec
