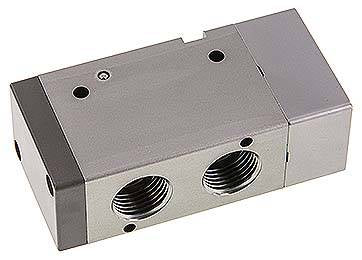

RV 3241-15 A (EMC) 3/2-way pneumatic valve, G 1/2", closed (NC)

Genuine EMC RV 3241-15 A – RV 3241-15 A (EMC) 3/2-way pneumatic valve, G 1/2", closed (NC). Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: RV 3241-15 A
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC RV 3241-15 A – RV 3241-15 A (EMC) 3/2-way pneumatic valve, G 1/2", closed (NC). Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: RV 3241-15 A
• Brand: EMC
• Product: RV 3241-15 A (EMC) 3/2-way pneumatic valve, G 1/2", closed (NC)

Trusted by engineers across the UK, this RV 3241-15 A (EMC) 3/2-way pneumatic valve, G 1/2", closed (NC) is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: aluminum, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1.5 to 8 bar

Control pressure:
2 to 8 bar

Media:
oiled and unoiled filtered compressed air

Service life:
min. 40 million switching cycles function closed (NC)* Thread G1 (2x) G 1/2" Thread exhaust air G1 (1x) G 1/2" Thread control connection G2 G 1/8" Nominal width [mm] 8 flow [l/min] 2250 A [mm] 103 B [mm] 50 C [mm] 34 D [mm] 13.5 E [mm] 21 F [mm] 48 H1 [mm] 5.3 H2 [mm] 4.3 J [mm] 27 K [mm] 24.8 L [mm] 40.5 M [mm] 29.3 N [mm] 31.5 O [mm] 45 P [mm] 2 W [mm] 0 Weight 430 g / pcs GTIN 4050571715144 Customs duty number 84812090 RoHS compliant Yes Manufacturer EMC
