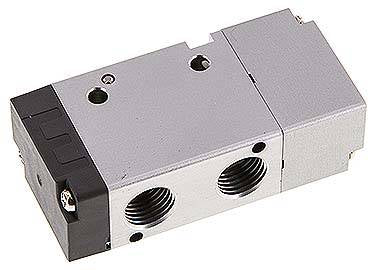

RV 3221-08 A (EMC) 3/2-way pneumatic valve, G 1/4", closed (NC)

Genuine EMC RV 3221-08 A – RV 3221-08 A (EMC) 3/2-way pneumatic valve, G 1/4", closed (NC). Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: RV 3221-08 A
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC RV 3221-08 A – RV 3221-08 A (EMC) 3/2-way pneumatic valve, G 1/4", closed (NC). Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: RV 3221-08 A
• Brand: EMC
• Product: RV 3221-08 A (EMC) 3/2-way pneumatic valve, G 1/4", closed (NC)

Trusted by engineers across the UK, this RV 3221-08 A (EMC) 3/2-way pneumatic valve, G 1/4", closed (NC) is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: aluminum, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1.5 to 8 bar

Control pressure:
2 to 8 bar

Media:
oiled and unoiled filtered compressed air

Service life:
min. 40 million switching cycles function closed (NC)* Thread G1 (2x) G 1/4" Thread exhaust air G1 (1x) G 1/4" Thread control connection G2 G 1/8" Nominal width [mm] 4.5 flow [l/min] 800 A [mm] 73 B [mm] 35 C [mm] 22 D [mm] 8.2 E [mm] 18.5 F [mm] 25 H1 [mm] 4.2 H2 [mm] 3.3 J [mm] 17 K [mm] 16 L [mm] 30 M [mm] 19.8 N [mm] 22.5 O [mm] 32 P [mm] 1.5 W [mm] 0 Weight 125 g / pcs GTIN 4050571714833 Customs duty number 84812090 RoHS compliant Yes Manufacturer EMC
