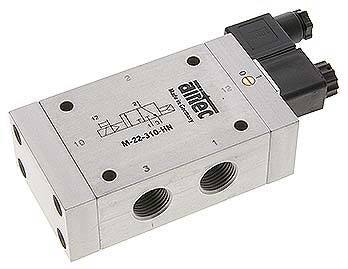

Airtec | M 22310HN 24V= | 3/2-Way | Solenoid Valve | 1/2"

Item description

Materials:
Body: anodized aluminum and plastic, internal parts: stainless steel and brass, seal: plastic / NBR

Temperature range:
-10 to +70 °C

Media:
oiled and unoiled filtered compressed air

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Information:
These valves are always supplied with a solenoid coil and a connector plug.

Structural shape solenoid coil:
N (plug size 1)

Pressure input:
Connection 1 Version Standard Control voltage 24 V DC function Air spring return (NC) Thread (2x) G 1/2" Thread exhaust air (1x) G 1/2" Nominal width [mm] 14 flow [l/min] 3300 Operating pressure [bar] 1 - 10 Power consumption (DC) [W] 4.2 Spare solenoid coil MAG N 24V= Weight 900 g / pcs GTIN 4050571475543 Customs duty number 84812090 RoHS compliant Yes Manufacturer Airtec
