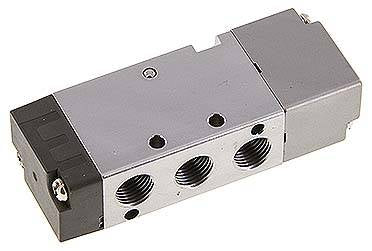

RV 5211-06 A (EMC) 5/2-way pneumatic valve, G 1/8", spring return

Genuine EMC RV 5211-06 A – RV 5211-06 A (EMC) 5/2-way pneumatic valve, G 1/8", spring return. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: RV 5211-06 A
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC RV 5211-06 A – RV 5211-06 A (EMC) 5/2-way pneumatic valve, G 1/8", spring return. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: RV 5211-06 A
• Brand: EMC
• Product: RV 5211-06 A (EMC) 5/2-way pneumatic valve, G 1/8", spring return

Trusted by engineers across the UK, this RV 5211-06 A (EMC) 5/2-way pneumatic valve, G 1/8", spring return is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: aluminum, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1.5 to 8 bar

Control pressure:
2 to 8 bar

Media:
oiled and unoiled filtered compressed air

Service life:
min. 40 million switching cycles Switching 5/2-way function spring return* Thread G1 (3x) G 1/8" Thread exhaust air G2 (2x) G 1/8" Thread control connection G3 G 1/8" Nominal width [mm] 3,9 flow [l/min] 500 A [mm] 72 B [mm] 27 C [mm] 18 D [mm] 9,5 E [mm] 24,5 F [mm] 14 H1 [mm] 3,3 H2 [mm] 3,3 J [mm] 13 K [mm] 16,5 L [mm] 30 M [mm] 17,5 N [mm] 28 O [mm] 23,5 P [mm] 3 S [mm] 16 T [mm] 31,5 W [mm] 2 Weight 80 g / pcs GTIN 4050571715656 Customs duty number 84812090 RoHS compliant Yes Manufacturer EMC
