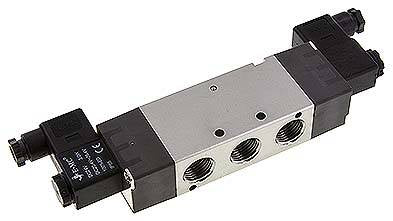

RV 5242-15-230V (EMC) 5/2-way solenoid valve, G 1/2", pulse valve, 230 V AC

Genuine EMC RV 5242-15-230V – RV 5242-15-230V (EMC) 5/2-way solenoid valve, G 1/2", pulse valve, 230 V AC. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: RV 5242-15-230V
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC RV 5242-15-230V – RV 5242-15-230V (EMC) 5/2-way solenoid valve, G 1/2", pulse valve, 230 V AC. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: RV 5242-15-230V
• Brand: EMC
• Product: RV 5242-15-230V (EMC) 5/2-way solenoid valve, G 1/2", pulse valve, 230 V AC

Trusted by engineers across the UK, this RV 5242-15-230V (EMC) 5/2-way solenoid valve, G 1/2", pulse valve, 230 V AC is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: aluminum, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1.5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Service life:
min. 40 million switching cycles

Structural shape solenoid coil:
T1 (plug size 1)

Information:
The coil and plug are enclosed as loose parts. Control voltage 230 V AC Switching 5/2-way function pulse valve Thread G1 (3x) G 1/2" Thread exhaust air G2 (2x) G 1/2" Nominal width [mm] 8 flow [l/min] 2250 Power consumption (AC) [VA] 4 Spare solenoid coil MAG T1 230V A [mm] 223.4 B [mm] 50 C [mm] 34 D [mm] 17.5 E [mm] 97.7 F [mm] 28 H1 [mm] 5.5 H2 [mm] 4.3 J [mm] 27 K [mm] 75.7 L [mm] 72 M [mm] 80.2 N [mm] 63 O [mm] 93.7 P [mm] 4 S [mm] 36 T [mm] 112 U [mm] 75 V [mm] 40.5 W [mm] 0 Weight 650 g / pcs GTIN 4050571716028 Customs duty number 84812090 Manufacturer EMC
