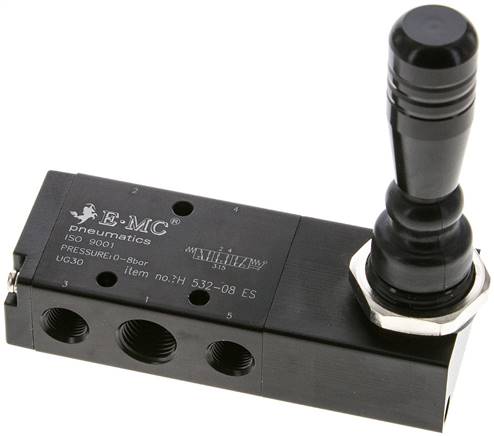

H 532-08 ES (EMC) 5/3-way hand lever valve, G 1/4", Center position vented, spring return
Product Description
Genuine EMC H 532-08 ES – H 532-08 ES (EMC) 5/3-way hand lever valve, G 1/4", Center position vented, spring return. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.
- Part Number: H 532-08 ES
- Brand: EMC
- Product Type: Pneumatic Component
Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.
Genuine EMC H 532-08 ES – H 532-08 ES (EMC) 5/3-way hand lever valve, G 1/4", Center position vented, spring return. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.
- Part Number: H 532-08 ES
- Brand: EMC
- Product: H 532-08 ES (EMC) 5/3-way hand lever valve, G 1/4", Center position vented, spring return
Trusted by engineers across the UK, this H 532-08 ES (EMC) 5/3-way hand lever valve, G 1/4", Center position vented, spring return is available for fast nationwide delivery from Roladex Industrial Supplies.
Item description
Materials:Body and slider: aluminum, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
| function | Center position vented, spring return |
| Thread G1 (3x) | G 1/4" |
| Thread exhaust air G2 (2x) | G 1/8" |
| Nominal width [mm] | 3.9 |
| flow [l/min] | 600 |
| A [mm] | 97.7 |
| B [mm] | 35 |
| C [mm] | 22 |
| D [mm] | 31.7 |
| E [mm] | 21.7 |
| F [mm] | 20 |
| H [mm] | 4.3 |
| J [mm] | 24 |
| K [mm] | 95 |
| M [mm] | 14.2 |
| N [mm] | 35 |
| O [mm] | 21.7 |
| P [mm] | 3 |
| S [mm] | 20 |
| T [mm] | 31.7 |
| U | M 22x1.5 |
| V [mm] | 5 |
| W [mm] | 0 |
| X [mm] | 5.5 |
| Weight | 250 g / pcs |
| GTIN | 4050571350154 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
