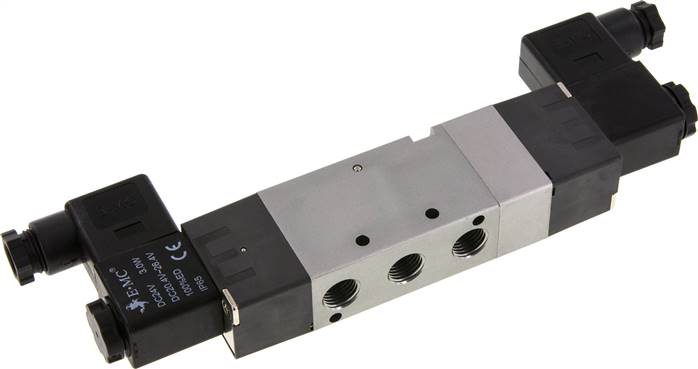

RV 5332-08P-24V= (EMC) 5/3-way solenoid valve, G 1/4", Center position breathing, 24 V DC

Genuine EMC RV 5332-08P-24V= – RV 5332-08P-24V= (EMC) 5/3-way solenoid valve, G 1/4", Center position breathing, 24 V DC. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: RV 5332-08P-24V=
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC RV 5332-08P-24V= – RV 5332-08P-24V= (EMC) 5/3-way solenoid valve, G 1/4", Center position breathing, 24 V DC. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: RV 5332-08P-24V=
• Brand: EMC
• Product: RV 5332-08P-24V= (EMC) 5/3-way solenoid valve, G 1/4", Center position breathing, 24 V DC

Trusted by engineers across the UK, this RV 5332-08P-24V= (EMC) 5/3-way solenoid valve, G 1/4", Center position breathing, 24 V DC is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: aluminum, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1.5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Service life:
min. 40 million switching cycles

Structural shape solenoid coil:
T1 (plug size 1)

Information:
The coil and plug are enclosed as loose parts. Control voltage 24 V DC Switching 5/3-way function Center position breathing Thread G1 (3x) G 1/4" Thread exhaust air G2 (2x) G 1/4" Nominal width [mm] 4.8 flow [l/min] 850 Power consumption (DC) [W] 3 Spare solenoid coil MAG T1 24V= A [mm] 209.4 B [mm] 40 C [mm] 27 D [mm] 13.5 E [mm] 83.2 F [mm] 24 H1 [mm] 4.3 H2 [mm] 4.3 J [mm] 20 K [mm] 70.2 L [mm] 50 M [mm] 72.7 N [mm] 45 O [mm] 84.2 P [mm] 0 S [mm] 24 T [mm] 95.2 U [mm] 70 V [mm] 40.5 W [mm] 0 Weight 460 g / pcs GTIN 4050571716561 Customs duty number 84812090 Manufacturer EMC
