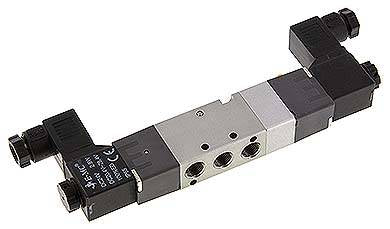

RV 5312-06P-24V= (EMC) 5/3-way solenoid valve, G 1/8", Center position breathing, 24 V DC

Genuine EMC RV 5312-06P-24V= – RV 5312-06P-24V= (EMC) 5/3-way solenoid valve, G 1/8", Center position breathing, 24 V DC. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: RV 5312-06P-24V=
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC RV 5312-06P-24V= – RV 5312-06P-24V= (EMC) 5/3-way solenoid valve, G 1/8", Center position breathing, 24 V DC. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: RV 5312-06P-24V=
• Brand: EMC
• Product: RV 5312-06P-24V= (EMC) 5/3-way solenoid valve, G 1/8", Center position breathing, 24 V DC

Trusted by engineers across the UK, this RV 5312-06P-24V= (EMC) 5/3-way solenoid valve, G 1/8", Center position breathing, 24 V DC is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: aluminum, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1.5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Service life:
min. 40 million switching cycles

Structural shape solenoid coil:
S (plug size 0)

Information:
The coil and plug are enclosed as loose parts. Control voltage 24 V DC Switching 5/3-way function Center position breathing Thread G1 (3x) G 1/8" Thread exhaust air G2 (2x) G 1/8" Nominal width [mm] 3.4 flow [l/min] 450 Power consumption (DC) [W] 2.8 Spare solenoid coil MAG S 24V= A [mm] 158.2 B [mm] 27 C [mm] 18 D [mm] 9.5 E [mm] 64.6 F [mm] 14 H1 [mm] 3.3 H2 [mm] 3.3 J [mm] 13 K [mm] 56.6 L [mm] 30 M [mm] 57.6 N [mm] 28 O [mm] 63.6 P [mm] 3 S [mm] 16 T [mm] 71.6 U [mm] 55.2 V [mm] 33.9 W [mm] 2 Weight 210 g / pcs GTIN 4050571716240 Customs duty number 84812090 Manufacturer EMC
