Description

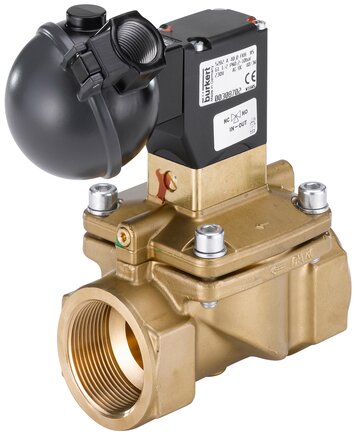

Burkert 5282 2/2-Way Valve – 24V AC – 5282-00-A20,0FFMSGM85-0-024/UC is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | FKM (fluoro rubber) |
| Sealing to the outside material | FKM (fluororubber) |
| Pilot control seal material | FKM (fluororubber) |
| Nominal pressure min | 0.2 bar |
| Nominal pressure max (Liquid) | 10 bar |
| Temperature ambient min | -40 °C |
| Temperature ambient max | 60 °C |
| Temperature medium min | 0 °C |
| Temperature medium max | 90 °C |
| Main valve nominal size 1 (P) (mm) | 20 mm |
| Main valve nominal size 1 (inch) | 3/4 inch |
| Line connection 2 type | Internal thread |
| Line connection 2 Thread type | G |
| Line connection 2 Thread designation | 3/4 |
| Voltage min / nominal voltage | 24 V |
| Voltage max / Nominal voltage | 24 V |
| AC voltage | Yes |
| DC voltage | Yes |
| Voltage frequency | 50/60 Hz |
| Feed control material in contact with the medium | brass |
| main valve material in contact with the medium | brass |
| mode of operation | A - closed in rest position - pressure port 1 (P/NC) |
| nominal power | 40 W |
| Weight | 1.7 kg / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
Supply & support
- UK supply from Roladex Industrial
- Trade pricing available
- Fast UK-wide delivery options
- Technical support for selection and equivalents
