Description

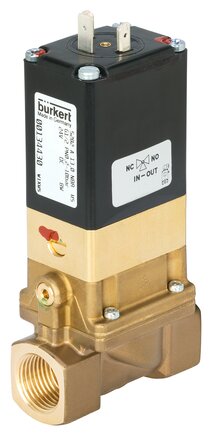

Burkert 5282 2/2-Way Solenoid Valve – 24V AC – 134439 is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | NBR (nitrile rubber) |
| Nominal pressure max (liquid) | 10 bar |
| Sealing to the outside Material | NBR (nitrile rubber) |
| Temperature ambient max | 55 °C |
| Temperature medium min | 0 °C |
| Pilot control seal material | NBR (nitrile rubber) |
| Nominal pressure min | 0.2 bar |
| Main valve nominal diameter 1 (inch) | 1 inch |
| Line connection 2 type | Internal thread |
| Nominal pressure max (liquid) | 10 bar |
| Line connection 2 thread designation | 1 |
| Voltage min / nominal voltage | 24 V |
| Voltage max / nominal voltage | 24 V |
| Temperature ambient min | Yes |
| Temperature ambient max | 55 °C |
| Temperature medium min | 0 °C |
| Temperature medium max | 80 °C |
| Pilot control material in contact with medium | Brass |
| How it works | A - closed in rest position - pressure port 1 (P/NC) |
| Main valve nominal size 1 (P) (mm) | 25 mm |
| Main valve nominal size 1 (inch) | 1 inch |
| Line connection 2 type | Female thread |
| Line connection 2 thread type | G |
| Line connection 2 Thread designation | 1 |
| Voltage min / nominal voltage | 24 V |
| Voltage max / nominal voltage | 24 V |
| AC voltage | Yes |
| Direct voltage | No |
| Voltage frequency | 50/60 Hz |
| Pilot control material in contact with the medium | Brass |
| Main valve material in contact with the medium | Brass |
| How it works | A - closed in rest position - pressure port 1 (P/NC) |
| Nominal power | 8 W |
| Weight | 1.9 kg / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
