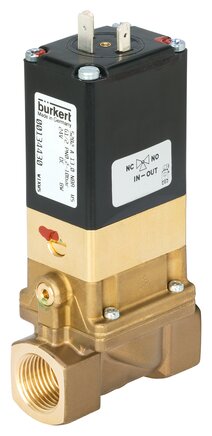

Burkert 5282 2/2-Way Solenoid Valve – Brass – G1" – 24V AC – 134495

burkert 5282 2/2-way solenoid valve – brass – g1" – 24v ac – 134495
Product details
Brand
Burkert
MPN
BUR-134495
Category
Solenoid Valves
Roladex Industrial
Genuine branded products View more Burkert products.
UK & export supply Industrial parts supplied across the UK and overseas.
Sourcing & quote support Talk directly to our industrial sales team.
Price ex VAT £555.10
Price inc VAT £666.12
Price:
£555.10
ex VAT
£666.12
inc VAT
Buy Burkert BUR-134495 from Roladex Industrial

Order online today, or request a quote for quantity pricing, confirmed lead time and suitable alternatives.

In stock
Expert support Technical support & sourcing
Customer assurance Delivery, returns & supply policies
Trade accounts Apply for a trade account
UK & export supply Delivery & supply policy

Product Description

Burkert 5282 2/2-Way Solenoid Valve – 24V AC – 134495 is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.

If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.

Key features

  • Genuine Bürkert component for industrial fluid control
  • Suitable for automation, process and OEM maintenance
  • Designed for dependable operation and long service life
  • Specification details listed below

Properties

CE mark Yes
Seat seal material category Elastomers
Seat seal material FKM (fluoro rubber)
Nominal pressure max (liquid) 10 bar
Sealing to the outside Material FKM (fluorinated rubber)
Temperature ambient max 55 °C
Temperature medium min 0 °C
Pilot control seal material FKM (fluorinated rubber)
Nominal pressure min 0.2 bar
Main valve nominal width 1 (inch) 1 inch
Line connection 2 type Internal thread
Nominal pressure max (liquid) 10 bar
Line connection 2 thread designation 1
Voltage min / nominal voltage 24 V
Voltage max / nominal voltage 24 V
Temperature ambient min Yes
Temperature ambient max 55 °C
Temperature medium min 0 °C
Temperature medium max 90 °C
Pilot control material in contact with the medium Brass
How it works A - closed in rest position - pressure port 1 (P/NC)
Main valve nominal size 1 (P) (mm) 25 mm
Main valve nominal size 1 (inch) 1 inch
Line connection 2 type Female thread
Line connection 2 thread type G
Line connection 2 Thread designation 1
Voltage min / nominal voltage 24 V
Voltage max / nominal voltage 24 V
AC voltage Yes
Direct voltage No
Voltage frequency 50/60 Hz
Pilot control material in contact with the medium Brass
Main valve material in contact with the medium Brass
How it works A - closed in rest position - pressure port 1 (P/NC)
Nominal power 8 W
Weight 1.9 kg / pcs
Customs duty number 84818079
Manufacturer Burkert

Supply & support

  • UK supply from Roladex Industrial
  • Trade pricing available
  • Fast UK-wide delivery options
  • Technical support for selection and equivalents
