Description

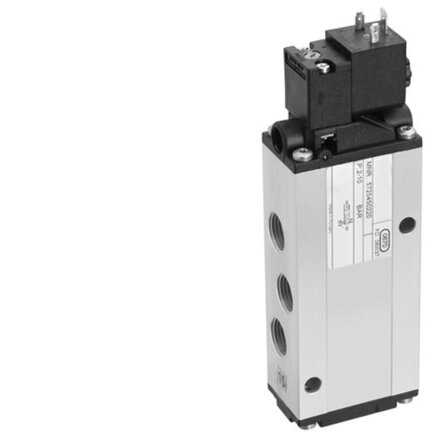

Genuine Aventics pneumatic valve.
| Manufacturer | Aventics |
| MPN | 5725475280 |
| Product Type | Pneumatic Valve |
| Series | Cd12 Series |
| Valve Configuration | 5/2 |
| Voltage | 230AC |
| Connection output | G 1/2 |
| Nominal flow Qn | 4100 l/min |
| Ambient temperature max. | 50 °C |
| Ambient temperature min. | -15 °C |
| Exhaust connection | G 1/2 |
| Inlet connection | G 1/2 |
| Max. operating pressure | 10 bar |
| Operating pressure min. | 2 bar |
| Electrical interface | EN 175301-?803, form A |
| Manual override | latching |
| Operating voltage V AC 50 Hz | 230 V |
| Operating voltage V AC 60Hz | 230 V |
| SAP short text | CD12-?5/2XX-?SR-230AC-I-G012-G012-EN175301 |
