Description

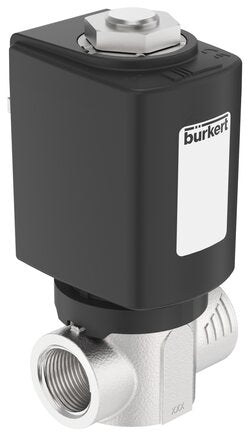

Burkert 6240 2/2-Way Solenoid Valve – 230V AC – 6240-A06,0DFVAGM83-K-BCY/AC-LU is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Plastics |
| Seat seal material | PCTFE (polychlorotrifluoroethylene) |
| Sealing to the outside material | FKM (fluorinated rubber) |
| pilot control seal material | PEEK (polyetheretherketone) |
| nominal pressure min | 1 bar |
| nominal pressure max (gas) | 250 bar |
| Nominal pressure max (liquid) | 250 bar |
| Nominal pressure (DIN EN 1333) | PN 250 |
| Temperature ambient min | -10 °C |
| Temperature ambient max | 55 °C |
| Temperature medium min | -10 °C |
| Temperature medium max | 80 °C |
| Main valve nominal diameter 1 (P) (mm) | 6 mm |
| Main valve nominal size 1 (inch) | 1/4 inch |
| Line connection 2 type | Internal thread |
| Line connection 2 thread type | G |
| Line connection 2 Thread designation | 3/8 |
| Voltage min / nominal voltage | 230 V |
| Voltage max / nominal voltage | 240 V |
| AC voltage | Yes |
| Direct voltage | No |
| Voltage Frequency | 50/60 Hz |
| Coil size | 42 mm |
| Main valve material in contact with the medium | Stainless steel |
| Valve seat material | Stainless steel |
| How it works | A - closed in rest position - pressure port 1 (P/NC) |
| Nominal power | 85 W |
| Weight | 800 g / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
Supply & support
- UK supply from Roladex Industrial
- Trade pricing available
- Fast UK-wide delivery options
- Technical support for selection and equivalents
Need help identifying the correct part? Call 01530 229728 or email sales@roladex.co.uk.
