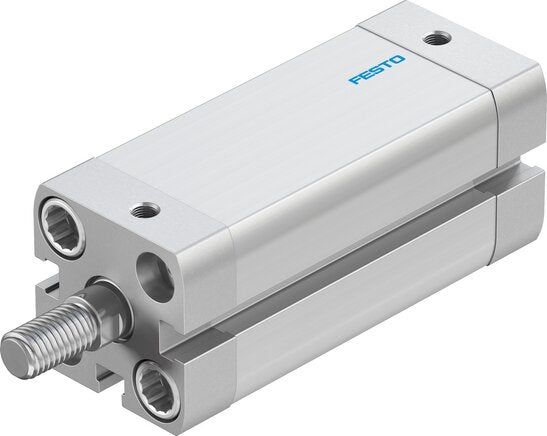

Festo | ADN-20-50-A-PPS-A | Compact Cylinder
Product details
Product Description
Genuine Festo pneumatic cylinder supplied by Roladex for industrial motion control, machine building and automation applications. Designed for reliable linear movement in compressed air systems.
| Manufacturer | Festo |
| MPN | ADN-20-50-A-PPS-A |
| Festo Part Number | 577172 |
| Product Type | Compact Cylinder |
| Series | Festo | ADN |
| Category | Pneumatic cylinders |
| Subcategory | Piston rod cylinder |
| GTIN / Barcode | 4052568104573 |
Manufacturer technical data
Technical data for Festo ADN-20-50-A-PPS-A (article 577172).
| Stroke | 50 mm |
|---|---|
| Piston diameter | 20 mm |
| Piston rod thread | M8 |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any |
| Piston-rod end | Male thread |
| Operating pressure | 0.15 MPa...1 MPa 1.5 bar...10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Type of mounting | Either: With through-hole With female thread With accessories |
| Pneumatic connection | M5 |
