Description

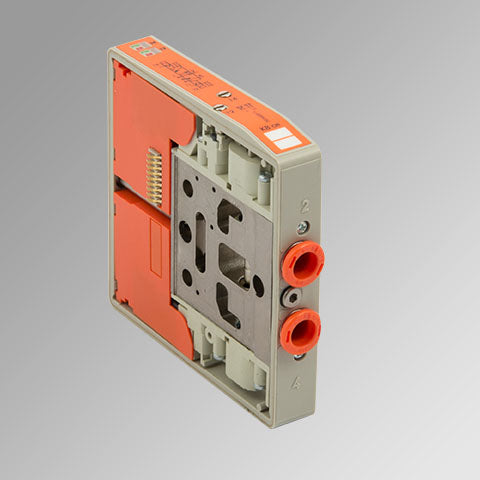

CM elctropneumatic valve, 5/3 closed centres, monostable, with unions for ø8 pipe and bistable manual control, voltage 24 VDC
Specifications:
| EAN code: | 8024986812244 |
| Short description: | CM elpn 5/3 CC, single sol., ø8 bist. man. ctrl,24 VDC MACH 11 |
| Quantity per package: | 0 |
| Minimum order quantity: | 0 |
| Unit of measure: | items |
| Valves - | |
| Flow-rate | 300.00 l/min |
| Flow-rate at 6.3 bar DP 1 bar (Nl/min) | 300 |
| Functional denomination | valves |
| Max input pressure N | 10.00 bar |
| Max temperature (°C) | 60 |
| Min Input Pressur | -0.99 bar |
| Min temperature (°C) | -10 |
| Product's series | CM valve |
| Protection degree | IP 65 |
| Push-in fitting for pipe (Ø) | Ø8 - 5/16" |
| Type | Electro-pneumatic |
| Voltage | 24 VDC |
| Way scheme | 5/3 |
