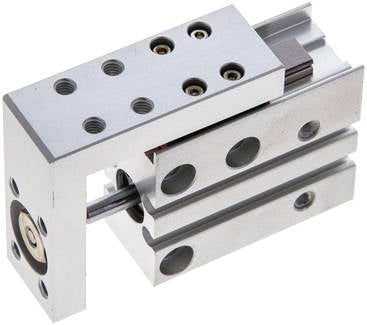

EXH 10/10 (EMC) Compact carriage, piston 10mm,stroke 10mm

Genuine EMC EXH 10/10 – EXH 10/10 (EMC) Compact carriage, piston 10mm,stroke 10mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EXH 10/10
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EXH 10/10 – EXH 10/10 (EMC) Compact carriage, piston 10mm,stroke 10mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EXH 10/10
• Brand: EMC
• Product: EXH 10/10 (EMC) Compact carriage, piston 10mm,stroke 10mm

Trusted by engineers across the UK, this EXH 10/10 (EMC) Compact carriage, piston 10mm,stroke 10mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and plate: Anodized aluminium, piston rod: Steel, hard chromeplated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
10 to +70 °C

Operating pressure:
max. 7 bar

Permitted kinetic energy:
Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH Piston diameter [mm] 10 Stroke [mm] 10 Version Compact sled P (compressed air port) M 5 Repair sets EXH 10 REP A [mm] 5 B [mm] 12 C [mm] 13 D [mm] 11,5 E [mm] 5 F [mm] 35,0 G [mm] 46,5 H [mm] 7,5 I [mm] 5,0 J [mm] 4x K [mm] 23 L [mm] 6,5 LA [mm] 10 LT [mm] 49 M [mm] 20 N [mm] 38,0 NS [mm] 14 O [mm] 8,0 P1 M 4 P2 M 4 P3 M 4 P4 M 5 P5 [mm] 7.5 (4.4 deep) P6 [mm] 4,3 Q1 [mm] 20 Q2 [mm] 47,0 R1 [mm] 11 R2 [mm] 18 S [mm] 46,0 S1 [mm] 6 S2 [mm] 7,5 S3 [mm] 8,0 T [mm] 21,5 U [mm] 13,0 V [mm] 5,0 W [mm] 23 X [mm] 11 Y [mm] 19 Z [mm] 11 Weight 130 g / pcs GTIN 4050571871260 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
