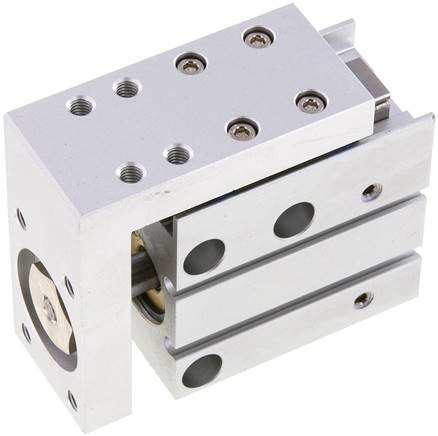

EXH 20/5 (EMC) Compact carriage, piston 20mm, stroke 5mm

Genuine EMC EXH 20/5 – EXH 20/5 (EMC) Compact carriage, piston 20mm, stroke 5mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EXH 20/5
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EXH 20/5 – EXH 20/5 (EMC) Compact carriage, piston 20mm, stroke 5mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EXH 20/5
• Brand: EMC
• Product: EXH 20/5 (EMC) Compact carriage, piston 20mm, stroke 5mm

Trusted by engineers across the UK, this EXH 20/5 (EMC) Compact carriage, piston 20mm, stroke 5mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and plate: Anodized aluminium, piston rod: Steel, hard chromeplated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
10 to +70 °C

Operating pressure:
max. 7 bar

Permitted kinetic energy:
Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH Piston diameter [mm] 20 Stroke [mm] 5 Version Compact sled P (compressed air port) M 5 Repair sets EXH 20 REP A [mm] 10 B [mm] 15 C [mm] 20 D [mm] 14,0 E [mm] 6 F [mm] 52,5 G [mm] 68,0 H [mm] 11,0 I [mm] 6,0 J [mm] 4x K [mm] 34 L [mm] 7,0 LA [mm] 10 LT [mm] 64 M [mm] 32 N [mm] 54,0 NS [mm] 20 O [mm] 9,5 P1 M 5 P2 M 5 P3 M 5 P4 M 6 P5 [mm] 9.3 (8.0 deep) P6 [mm] 5,1 Q1 [mm] 32 Q2 [mm] 64,5 R1 [mm] 20 R2 [mm] 34 S [mm] 63,5 S1 [mm] 8 S2 [mm] 11,0 S3 [mm] 9,5 T [mm] 24,5 U [mm] 20,0 V [mm] 6,0 W [mm] 34 X [mm] 14 Y [mm] 31 Z [mm] 20 Weight 420 g / pcs GTIN 4050571871505 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
