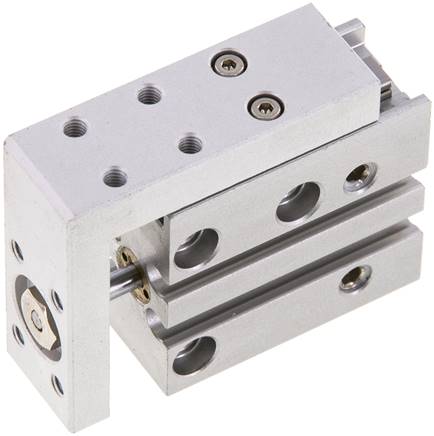

EXH 6/5 (EMC) Compact carriage, piston 6mm, stroke 5mm

Genuine EMC EXH 6/5 – EXH 6/5 (EMC) Compact carriage, piston 6mm, stroke 5mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EXH 6/5
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EXH 6/5 – EXH 6/5 (EMC) Compact carriage, piston 6mm, stroke 5mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EXH 6/5
• Brand: EMC
• Product: EXH 6/5 (EMC) Compact carriage, piston 6mm, stroke 5mm

Trusted by engineers across the UK, this EXH 6/5 (EMC) Compact carriage, piston 6mm, stroke 5mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and plate: Anodized aluminium, piston rod: Steel, hard chromeplated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
10 to +70 °C

Operating pressure:
max. 7 bar

Permitted kinetic energy:
Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH Piston diameter [mm] 6 Stroke [mm] 5 Version Compact sled P (compressed air port) M 5 Repair sets EXH 6 REP A [mm] 5 B [mm] 10 C [mm] 10 D [mm] 9,5 E [mm] 4 F [mm] 31,0 G [mm] 39,5 H [mm] 5,5 I [mm] 5,0 J [mm] 4x K [mm] 19 L [mm] 5,5 LA [mm] 10 LT [mm] 42 M [mm] 18 N [mm] 32,0 NS [mm] 14 O [mm] 6,5 P1 M 3 P2 M 3 P3 M 3 P4 M 4 P5 [mm] 6.0 (3.3 deep) P6 [mm] 3,3 Q1 [mm] 16 Q2 [mm] 39,0 R1 [mm] 9 R2 [mm] 15 S [mm] 38,0 S1 [mm] 5 S2 [mm] 5,5 S3 [mm] 6,5 T [mm] 17,0 U [mm] 10,5 V [mm] 5,0 W [mm] 19 X [mm] 8 Y [mm] 15 Z [mm] 9 Weight 65 g / pcs GTIN 4050571871598 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
