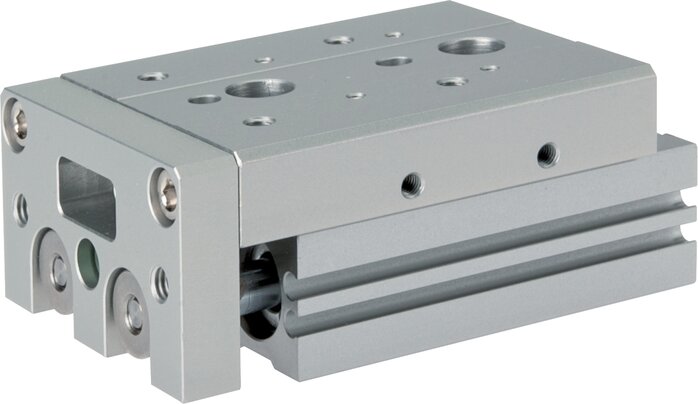

ELS 16/20-BS (EMC) Compact carriages, pistons 16mm,stroke 20mm, with stroke limitation for deploying (shock absorber)

Genuine EMC ELS 16/20-BS – ELS 16/20-BS (EMC) Compact carriages, pistons 16mm,stroke 20mm, with stroke limitation for deploying (shock absorber). Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: ELS 16/20-BS
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC ELS 16/20-BS – ELS 16/20-BS (EMC) Compact carriages, pistons 16mm,stroke 20mm, with stroke limitation for deploying (shock absorber). Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: ELS 16/20-BS
• Brand: EMC
• Product: ELS 16/20-BS (EMC) Compact carriages, pistons 16mm,stroke 20mm, with stroke limitation for deploying (shock absorber)

Trusted by engineers across the UK, this ELS 16/20-BS (EMC) Compact carriages, pistons 16mm,stroke 20mm, with stroke limitation for deploying (shock absorber) is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and plate: Anodized aluminium, piston rods: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
10 to +60 °C

Operating pressure:
max. 7 bar

Piston speed
50 500 mm/s

Version:
With Magnetic piston

Optional:
with stroke limitation (fixed stop) while deploying (10 mm) AS*, with stroke limitation (fixed stop) retracting (10 mm) AT*, with stroke limitation (fixed stop) on both sides (20 mm)A*, with stroke limitation (shock absorber) while deploying (not Ø 6, Ø 8: 20mm, Ø 12: 18 mm, Ø 16 & 20: 25 mm, Ø 25: 35 mm) BS*, with stroke limitation (shock absorber) while retracting (not Ø 6, Ø 8: 20 mm, Ø 12: 18 mm, Ø 16 & 20: 25 mm, Ø 25: 35 mm) BT*, with stroke limitation (shock absorber) on both sides (not Ø 6, Ø 8: 40 mm, Ø 12: 36 mm, Ø 16 & 20: 50 mm, Ø 25: 70 mm) B*

Cylinder switch type:
D

Advantages:
•high rigidity,
•numerous fastening options,
•position holes for accurately repeatable workpiece mounting,
•stroke adjustable by stroke limiters (as fixed stop or shock absorber),
•main installation dimensions identical to SMC Series MXS Piston diameter [mm] 16 Stroke [mm] 20 Stroke (adjustment range) [mm] 0 20 Version with stroke limitation for deploying (shock absorber) G (compressed air port) M 5 Repair sets ELS 16 REP A [mm] 62 B [mm] 58 BA [mm] 26 BB [mm] 12,0 BC [mm] 6,0 BD M 5 BD1 [mm] 7,0 C [mm] 40 CA [mm] 36,5 F [mm] 35 FA [mm] 35 FB [mm] 21 FC (+0.03 / 0.2) [mm] 5 (4 deep) FD [mm] 6 FE M 5 FE1 [mm] 6,0 FF [mm] 35 H [mm] 40 HA [mm] 40 HB [mm] 16 HC [mm] 16 HE M 6 HE1 [mm] 12 HF [mm] 5,1 KA [mm] 48 KB [mm] 20 KC M 6 KC1 [mm] 10 L [mm] 19,0 LA [mm] 8,0 LB [mm] 24,0 LC [mm] 12,0 LD [mm] 21,0 LE [mm] 10,0 LF [mm] 5,5 LG [mm] 9,5 LH [mm] 11,0 LJ [mm] 3 LK [mm] 5,50 LM [mm] 6,0 LN [mm] 12,0 LO M 5 LO1 [mm] 6,5 LP M 5 LP1 [mm] 5,5 M [mm] 76 MA [mm] 10 N 4x N1 2x N2 4x P M 10x1 Z [mm] 75,0 Weight 650 g / pcs GTIN 4050571876975 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
