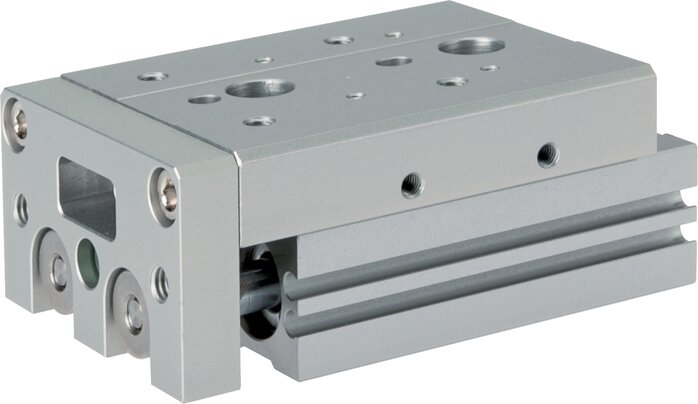

ELS 25/125 (EMC) Compact carriages, pistons 25mm, stroke 125mm, standard

Genuine EMC ELS 25/125 – ELS 25/125 (EMC) Compact carriages, pistons 25mm, stroke 125mm, standard. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: ELS 25/125
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC ELS 25/125 – ELS 25/125 (EMC) Compact carriages, pistons 25mm, stroke 125mm, standard. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: ELS 25/125
• Brand: EMC
• Product: ELS 25/125 (EMC) Compact carriages, pistons 25mm, stroke 125mm, standard

Trusted by engineers across the UK, this ELS 25/125 (EMC) Compact carriages, pistons 25mm, stroke 125mm, standard is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and plate: Anodized aluminium, piston rods: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
10 to +60 °C

Operating pressure:
max. 7 bar

Piston speed
50 500 mm/s

Version:
With Magnetic piston

Optional:
with stroke limitation (fixed stop) while deploying (10 mm) AS*, with stroke limitation (fixed stop) retracting (10 mm) AT*, with stroke limitation (fixed stop) on both sides (20 mm)A*, with stroke limitation (shock absorber) while deploying (not Ø 6, Ø 8: 20mm, Ø 12: 18 mm, Ø 16 & 20: 25 mm, Ø 25: 35 mm) BS*, with stroke limitation (shock absorber) while retracting (not Ø 6, Ø 8: 20 mm, Ø 12: 18 mm, Ø 16 & 20: 25 mm, Ø 25: 35 mm) BT*, with stroke limitation (shock absorber) on both sides (not Ø 6, Ø 8: 40 mm, Ø 12: 36 mm, Ø 16 & 20: 50 mm, Ø 25: 70 mm) B*

Cylinder switch type:
D

Advantages:
•high rigidity,
•numerous fastening options,
•position holes for accurately repeatable workpiece mounting,
•stroke adjustable by stroke limiters (as fixed stop or shock absorber),
•main installation dimensions identical to SMC Series MXS Piston diameter [mm] 25 Stroke [mm] 125 Stroke (adjustment range) [mm] 124,9 125,1 Version Standard G (compressed air port) G 1/8" Repair sets ELS 25 REP A [mm] 86 B [mm] 86 BA [mm] 38 BB [mm] 22,0 BC [mm] 7,0 BD M 6 BD1 [mm] 10,0 BE [mm] 38 C [mm] 62 CA [mm] 56,5 F [mm] 75 FA [mm] 56 FB [mm] 30 FC (+0.03 / 0.2) [mm] 6 (6 deep) FD [mm] 7 FE M 6 FE1 [mm] 13,0 FF [mm] 75 H [mm] 38 HA [mm] 76 HB [mm] 154 HC [mm] 40 HE M 8 HE1 [mm] 8 HF [mm] 6,8 KA [mm] 70 KB [mm] 31 KC M 8 KC1 [mm] 15 L [mm] 25,0 LA [mm] 12,0 LB [mm] 33,5 LC [mm] 16,0 LD [mm] 33,0 LE [mm] 15,0 LF [mm] 9,0 LG [mm] 16,5 LH [mm] 16,0 LJ [mm] 4 LK [mm] 8,00 LM [mm] 7,5 LN [mm] 17,0 LO M 8 LO1 [mm] 8,5 LP M 8 LP1 [mm] 8,0 M [mm] 255 MA [mm] 15 N 8x N1 6x N2 6x Z [mm] 253,5 Weight 3,5 kg / pcs GTIN 4050571925918 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
