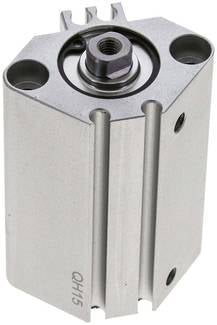

SQN 20/35 SZ (EMC) Compact cylinders, double acting, piston 20 mm, stroke 35 mm

Genuine EMC SQN 20/35 SZ – SQN 20/35 SZ (EMC) Compact cylinders, double acting, piston 20 mm, stroke 35 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQN 20/35 SZ
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQN 20/35 SZ – SQN 20/35 SZ (EMC) Compact cylinders, double acting, piston 20 mm, stroke 35 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQN 20/35 SZ
• Brand: EMC
• Product: SQN 20/35 SZ (EMC) Compact cylinders, double acting, piston 20 mm, stroke 35 mm

Trusted by engineers across the UK, this SQN 20/35 SZ (EMC) Compact cylinders, double acting, piston 20 mm, stroke 35 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2) Piston diameter [mm] 20 Stroke [mm] 35 H (piston rod thread) M 5 G (compressed air port) M 5 Repair sets SQN 20 REP A [mm] 36,0 B [mm] 31,5 C [mm] 7 D [mm] 10 E [mm] 47 F [mm] 5,5 K [mm] 8 L [mm] 4,5 M [mm] 36 N [mm] 5,5 O [mm] 9 (5,5 deep) P M 6 P1 [mm] 17,0 Q [mm] 10,5 S [mm] 35,5 U [mm] 18 V [mm] 36 Weight 190 g / pcs GTIN 4050571638672 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
