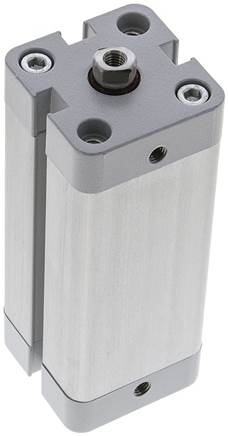

Airtec | NXD 25/60 | Double Acting | Compact Cylinder | Stroke 60mm | Bore 25mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 25 Stroke [mm] 60 Version Standard G1 (piston rod female thread) M 5 M (compressed air port) M 5 Repair sets NXD 25 REP A [mm] 40 B [mm] 10 C [mm] 6 D [mm] 4.2 E M 5 F [mm] 7.5 J [mm] 39.5 N [mm] 8.0 O [mm] 12.75 P [mm] 26 Q [mm] 10 T [mm] 8 U [mm] 4.5 Z [mm] 5.5 Weight 310 g / pcs GTIN 4050571528065 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
