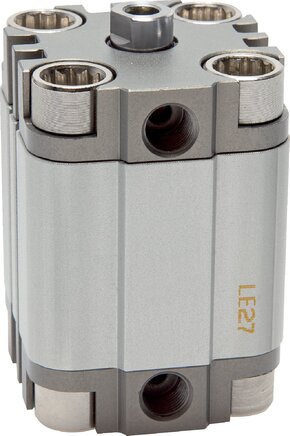

SES 25/70 (EMC) Compact cylinders, double acting, piston 25 mm, stroke 70 mm

Genuine EMC SES 25/70 – SES 25/70 (EMC) Compact cylinders, double acting, piston 25 mm, stroke 70 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SES 25/70
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SES 25/70 – SES 25/70 (EMC) Compact cylinders, double acting, piston 25 mm, stroke 70 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SES 25/70
• Brand: EMC
• Product: SES 25/70 (EMC) Compact cylinders, double acting, piston 25 mm, stroke 70 mm

Trusted by engineers across the UK, this SES 25/70 (EMC) Compact cylinders, double acting, piston 25 mm, stroke 70 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: painted aluminium, cylinder tube: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
20 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
F

Optional:
Piston rod with male thread B Piston diameter [mm] 25 Stroke [mm] 70 Version Standard H (piston rod female thread) M 5 G (compressed air port) M 5 A [mm] 45,0 B [mm] 39,5 C [mm] 12 D [mm] 10 E [mm] 40 F [mm] 7 J [mm] 41,5 K [mm] 8 L [mm] 5,5 M [mm] 26 N M 5 O [mm] 6 Weight 390 g / pcs GTIN 4050571618728 Customs duty number 84123100 Manufacturer EMC
