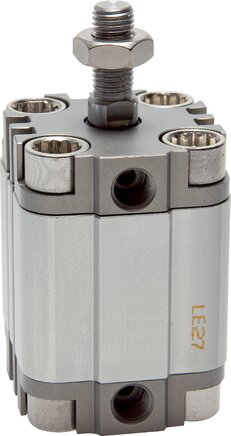

SES 32/25-B (EMC) Compact cylinders, double acting, piston 32 mm, stroke 25 mm

Genuine EMC SES 32/25-B – SES 32/25-B (EMC) Compact cylinders, double acting, piston 32 mm, stroke 25 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SES 32/25-B
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SES 32/25-B – SES 32/25-B (EMC) Compact cylinders, double acting, piston 32 mm, stroke 25 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SES 32/25-B
• Brand: EMC
• Product: SES 32/25-B (EMC) Compact cylinders, double acting, piston 32 mm, stroke 25 mm

Trusted by engineers across the UK, this SES 32/25-B (EMC) Compact cylinders, double acting, piston 32 mm, stroke 25 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: painted aluminium, cylinder tube: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
20 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
F

Optional:
Piston rod with male thread B Piston diameter [mm] 32 Stroke [mm] 25 Version Piston rod with male thread S (piston rod male thread) M 10x1,25 G (compressed air port) G 1/8" A [mm] 50,5 B [mm] 44,5 C [mm] 14 D [mm] 12 E [mm] 50 F [mm] 8 J [mm] 52,0 K [mm] 10 L [mm] 6,0 M [mm] 32 N M 6 O [mm] 6 Q [mm] 22 R [mm] 20 Weight 470 g / pcs GTIN 4050571618889 Customs duty number 84123100 Manufacturer EMC
