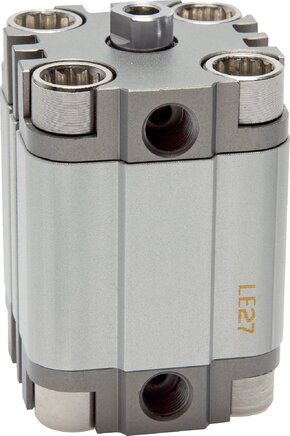

SES 40/10 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 10 mm

Genuine EMC SES 40/10 – SES 40/10 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 10 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SES 40/10
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SES 40/10 – SES 40/10 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 10 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SES 40/10
• Brand: EMC
• Product: SES 40/10 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 10 mm

Trusted by engineers across the UK, this SES 40/10 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 10 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: painted aluminium, cylinder tube: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
20 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
F

Optional:
Piston rod with male thread B Piston diameter [mm] 40 Stroke [mm] 10 Version Standard H (piston rod female thread) M 6 G (compressed air port) G 1/8" A [mm] 52,0 B [mm] 45,5 C [mm] 14 D [mm] 12 E [mm] 60 F [mm] 8 J [mm] 62,5 K [mm] 10 L [mm] 6,5 M [mm] 42 N M 6 O [mm] 6 Weight 500 g / pcs GTIN 4050571619060 Customs duty number 84123100 Manufacturer EMC
