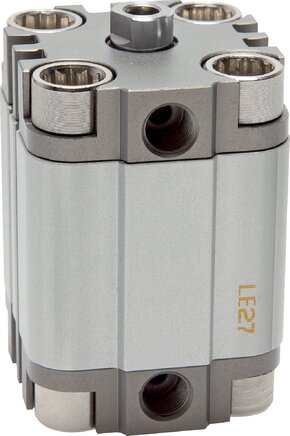

SES 40/100 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 100 mm

Genuine EMC SES 40/100 – SES 40/100 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 100 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SES 40/100
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SES 40/100 – SES 40/100 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 100 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SES 40/100
• Brand: EMC
• Product: SES 40/100 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 100 mm

Trusted by engineers across the UK, this SES 40/100 (EMC) Compact cylinders, double acting, piston 40 mm, stroke 100 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: painted aluminium, cylinder tube: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
20 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
F

Optional:
Piston rod with male thread B Piston diameter [mm] 40 Stroke [mm] 100 Version Standard H (piston rod female thread) M 6 G (compressed air port) G 1/8" A [mm] 52,0 B [mm] 45,5 C [mm] 14 D [mm] 12 E [mm] 60 F [mm] 8 J [mm] 62,5 K [mm] 10 L [mm] 6,5 M [mm] 42 N M 6 O [mm] 6 Weight 1,1 kg / pcs GTIN 4050571619077 Customs duty number 84123100 Manufacturer EMC
