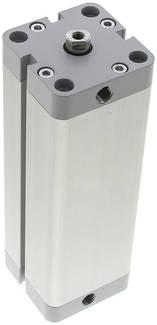

Airtec | NXD 40/125 | Double Acting | Compact Cylinder | Stroke 125mm | Bore 40mm

Manufacturer: Airtec

MPN: NXD 40/125

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 40 Stroke [mm] 125 Version Standard G1 (piston rod female thread) M 6 M (compressed air port) G 1/8" Repair sets NXD 40 REP A [mm] 58 B [mm] 12 C [mm] 6 D [mm] 5,2 E M 6 F [mm] 9,0 J [mm] 45,5 L [mm] 3 N [mm] 8,0 O [mm] 14,75 P [mm] 42 Q [mm] 12 T [mm] 10 U [mm] 5,5 Z [mm] 6,5 Weight 800 g / pcs GTIN 4050571528539 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
