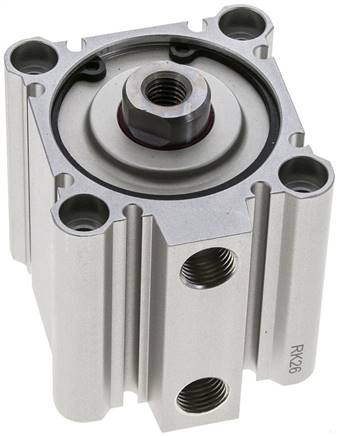

SQN 50/25 SZ (EMC) Compact cylinders, double acting, piston 50 mm, stroke 25 mm

Genuine EMC SQN 50/25 SZ – SQN 50/25 SZ (EMC) Compact cylinders, double acting, piston 50 mm, stroke 25 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQN 50/25 SZ
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQN 50/25 SZ – SQN 50/25 SZ (EMC) Compact cylinders, double acting, piston 50 mm, stroke 25 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQN 50/25 SZ
• Brand: EMC
• Product: SQN 50/25 SZ (EMC) Compact cylinders, double acting, piston 50 mm, stroke 25 mm

Trusted by engineers across the UK, this SQN 50/25 SZ (EMC) Compact cylinders, double acting, piston 50 mm, stroke 25 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2) Piston diameter [mm] 50 Stroke [mm] 25 H (piston rod thread) M 10 G (compressed air port) G 1/4" Repair sets SQN 50 REP A [mm] 48,5 B [mm] 40,5 C [mm] 15 D [mm] 20 E [mm] 64 F [mm] 10,5 J [mm] 7,0 K [mm] 17 L [mm] 8,0 M [mm] 50 N [mm] 6,5 O [mm] 10,5 (6,5 deep) P M 8 P1 [mm] 22,0 Q [mm] 10,5 Weight 550 g / pcs GTIN 4050571639228 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
