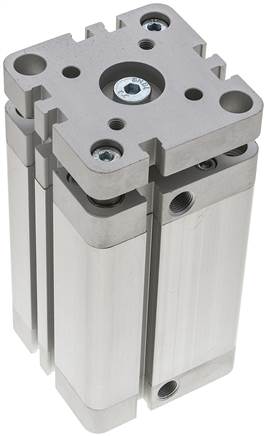

Airtec | NXDA 50/70 | Double Acting | Compact Cylinder | Stroke 70mm | Bore 50mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 50 Stroke [mm] 70 Version non-?rotating piston rod M (compressed air port) G 1/8" Repair sets NXD 50 REP A [mm] 67 B [mm] 16 C [mm] 6 D [mm] 6.7 E M 8 F [mm] 10.5 G [mm] 22 H [mm] 10 I M 6 J [mm] 45.5 K [mm] 6 L [mm] 0 N [mm] 8.0 O [mm] 14.75 P [mm] 50 R [mm] 42 S [mm] 29.7 T [mm] 13 U [mm] 6.5 W [mm] 7.5 X [mm] 2.5 Y [mm] 12 Z [mm] 7.5 Weight 1.1 kg / pcs GTIN 4050571530914 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
