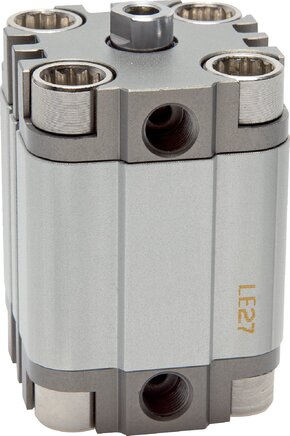

SES 63/10 (EMC) Compact cylinders, double acting, piston 63 mm, stroke 10 mm

Genuine EMC SES 63/10 – SES 63/10 (EMC) Compact cylinders, double acting, piston 63 mm, stroke 10 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SES 63/10
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SES 63/10 – SES 63/10 (EMC) Compact cylinders, double acting, piston 63 mm, stroke 10 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SES 63/10
• Brand: EMC
• Product: SES 63/10 (EMC) Compact cylinders, double acting, piston 63 mm, stroke 10 mm

Trusted by engineers across the UK, this SES 63/10 (EMC) Compact cylinders, double acting, piston 63 mm, stroke 10 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: painted aluminium, cylinder tube: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
20 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
F

Optional:
Piston rod with male thread B Piston diameter [mm] 63 Stroke [mm] 10 Version Standard H (piston rod female thread) M 8 G (compressed air port) G 1/8" Repair sets SES 63 REP A [mm] 57,5 B [mm] 50,0 C [mm] 16 D [mm] 16 E [mm] 87 F [mm] 8 J [mm] 91,0 K [mm] 13 L [mm] 7,5 M [mm] 62 N M 10 O [mm] 8 Weight 1,1 kg / pcs GTIN 4050571619619 Customs duty number 84123100 Manufacturer EMC
