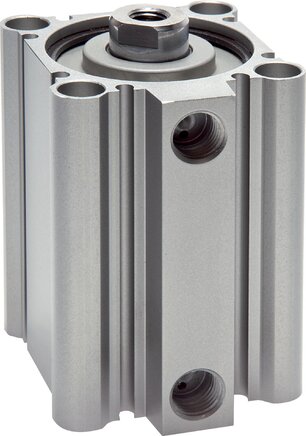

SQN 80/90 SZ (EMC) Compact cylinders, double acting, piston 80 mm, stroke 90 mm

Genuine EMC SQN 80/90 SZ – SQN 80/90 SZ (EMC) Compact cylinders, double acting, piston 80 mm, stroke 90 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQN 80/90 SZ
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQN 80/90 SZ – SQN 80/90 SZ (EMC) Compact cylinders, double acting, piston 80 mm, stroke 90 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQN 80/90 SZ
• Brand: EMC
• Product: SQN 80/90 SZ (EMC) Compact cylinders, double acting, piston 80 mm, stroke 90 mm

Trusted by engineers across the UK, this SQN 80/90 SZ (EMC) Compact cylinders, double acting, piston 80 mm, stroke 90 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2) Piston diameter [mm] 80 Stroke [mm] 90 H (piston rod thread) M 16 G (compressed air port) G 3/8" Repair sets SQN 80 REP A [mm] 63,5 B [mm] 53,5 C [mm] 21 D [mm] 25 E [mm] 98 F [mm] 12,5 J [mm] 6,0 K [mm] 22 L [mm] 10,0 M [mm] 77 N [mm] 11,0 O [mm] 17 (11 deep) P M 12 P1 [mm] 35,5 Q [mm] 16,0 Weight 2,2 kg / pcs GTIN 4050571639679 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
