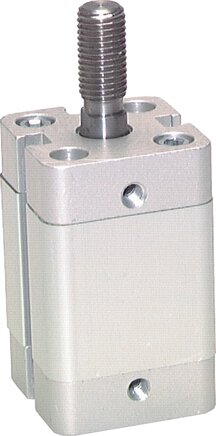

Airtec | NXEE 100/15-AG | Single Acting | Compact Cylinder | Stroke 15mm | Bore 100mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 100 Stroke [mm] 15 Version Extended in idle position, piston rod with male thread G2 (piston rod male thread) M 20x1.5 M (compressed air port) G 1/4" Repair sets NXE 100 REP A [mm] 124 C [mm] 8 D [mm] 8.5 E M 10 F [mm] 13.5 J [mm] 66.5 L [mm] 0 N [mm] 10.5 O [mm] 19.25 P [mm] 103 Q [mm] 20 T [mm] 22 U [mm] 8.5 V [mm] 40 Z [mm] 10.0 GTIN 4050571533007 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
