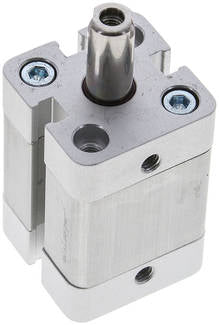

Airtec | NXEE 20/15 | Single Acting | Compact Cylinder | Stroke 15mm | Bore 20mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 20 Stroke [mm] 15 Version extended in idle position G1 (piston rod female thread) M 5 M (compressed air port) M 5 Repair sets NXE 20 REP A [mm] 36 B [mm] 10 C [mm] 6 D [mm] 4.2 E M 5 F [mm] 7.5 J [mm] 38.0 L [mm] 0 N [mm] 8.0 O [mm] 12.25 P [mm] 22 Q [mm] 10 T [mm] 8 U [mm] 4.5 Z [mm] 4.5 Weight 160 g / pcs GTIN 4050571533274 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
