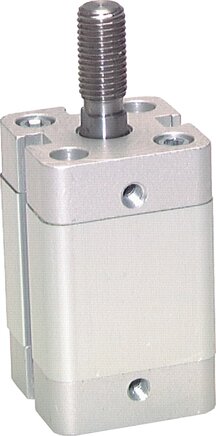

Airtec | NXE 50/15-AG | Single Acting | Compact Cylinder | Stroke 15mm | Bore 50mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 50 Stroke [mm] 15 Version Piston rod with male thread G2 (piston rod male thread) M 12x1.25 M (compressed air port) G 1/8" Repair sets NXE 50 REP A [mm] 67 C [mm] 6 D [mm] 6.7 E M 8 F [mm] 10.5 J [mm] 45.5 L [mm] 0 N [mm] 8.0 O [mm] 14.75 P [mm] 50 Q [mm] 12 T [mm] 13 U [mm] 6.5 V [mm] 24 Z [mm] 7.5 GTIN 4050571532680 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
