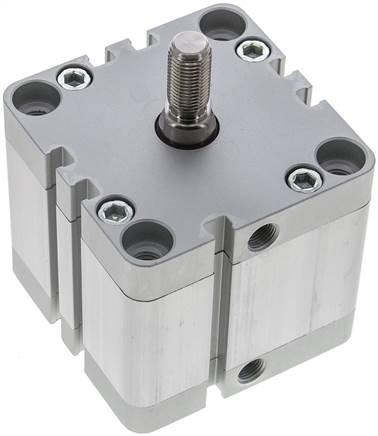

Airtec | NXE 63/25-AG | Single Acting | Compact Cylinder | Stroke 25mm | Bore 63mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 63 Stroke [mm] 25 Version Piston rod with male thread G2 (piston rod male thread) M 12x1.25 M (compressed air port) G 1/8" Repair sets NXE 63 REP A [mm] 80 C [mm] 8 D [mm] 8.5 E M 10 F [mm] 13.5 J [mm] 50.0 L [mm] 0 N [mm] 8.0 O [mm] 14.25 P [mm] 62 Q [mm] 14 T [mm] 13 U [mm] 8.5 V [mm] 24 Z [mm] 7.5 Weight 850 g / pcs GTIN 4050571532840 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
