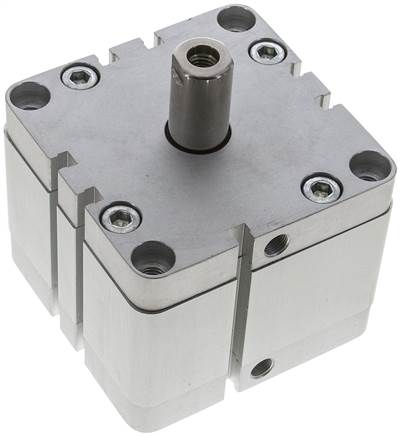

Airtec | NXEE 80/25 | Single Acting | Compact Cylinder | Stroke 25mm | Bore 80mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 80 Stroke [mm] 25 Version extended in idle position G1 (piston rod female thread) M 10 M (compressed air port) G 1/8" Repair sets NXE 80 REP A [mm] 100 B [mm] 20 C [mm] 8 D [mm] 8.5 E M 10 F [mm] 13.5 J [mm] 56.0 L [mm] 0 N [mm] 8.5 O [mm] 16.00 P [mm] 82 Q [mm] 15 T [mm] 17 U [mm] 8.5 Z [mm] 8.0 Weight 1.7 kg / pcs GTIN 4050571533908 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
