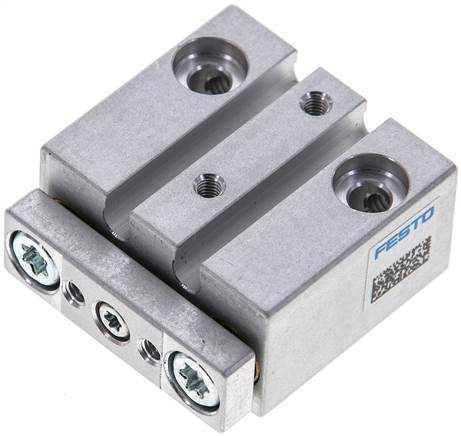

Festo | DFM-10-10-P-A-GF | Guided Drive

Product details
Product Description
Genuine Festo pneumatic cylinder supplied by Roladex for industrial motion control, machine building and automation applications. Designed for reliable linear movement in compressed air systems.
| Manufacturer | Festo |
| MPN | DFM-10-10-P-A-GF |
| Festo Part Number | 4154769 |
| Product Type | Guided Drive |
| Series | Festo | DFM |
| Category | Pneumatic cylinders |
| Subcategory | Drives with guides / mini slides |
| GTIN / Barcode | 4052568418052 |
Manufacturer technical data
Technical data for Festo DFM-10-10-P-A-GF (article 4154769).
| Stroke | 10 mm |
|---|---|
| Piston diameter | 10 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Operating pressure | 0.15 MPa...0.8 MPa 1.5 bar...8 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Ambient temperature | -10 °C...60 °C |
| Pneumatic connection | M3 |
| Material cover | High-alloy stainless steel |
| Material seals | NBR |
