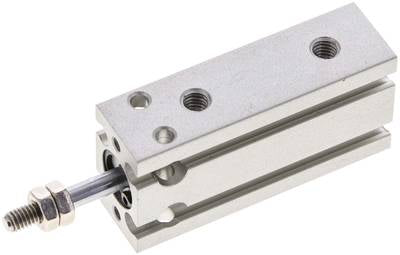

EU 10/15 (EMC) Direct assembly cylinder, piston 10mm,stroke 15mm, standard

Genuine EMC EU 10/15 – EU 10/15 (EMC) Direct assembly cylinder, piston 10mm,stroke 15mm, standard. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EU 10/15
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EU 10/15 – EU 10/15 (EMC) Direct assembly cylinder, piston 10mm,stroke 15mm, standard. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EU 10/15
• Brand: EMC
• Product: EU 10/15 (EMC) Direct assembly cylinder, piston 10mm,stroke 15mm, standard

Trusted by engineers across the UK, this EU 10/15 (EMC) Direct assembly cylinder, piston 10mm,stroke 15mm, standard is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
10 to +60 °C

Operating pressure:
max. 7 bar

Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod

Cylinder switch type:
D

Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK Piston diameter [mm] 10 Stroke [mm] 15 Version Standard E (piston rod thread) M 4 G (compressed air port) M 5 Repair sets EU 10 REP A1 [mm] 36 A2 [mm] 52 B [mm] 15 C [mm] 24 D [mm] 4 D1 [mm] 16 E1 [mm] 10,0 E2 [mm] 11,0 G1 [mm] 15,5 G2 [mm] 10,0 H [mm] 5.8 (4.5 deep) H1 [mm] 3,2 H2 [mm] 11 H3 [mm] 7 H4 [mm] 9 J M 3 J1 [mm] 18 J2 [mm] 5 Weight 55 g / pcs GTIN 4050571871789 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
