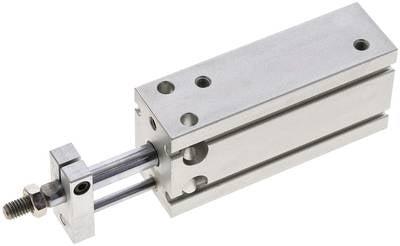

EUK 20/40 (EMC) Direct assembly cylinder, piston 20mm, stroke 40mm, non-rotating piston rod

Genuine EMC EUK 20/40 – EUK 20/40 (EMC) Direct assembly cylinder, piston 20mm, stroke 40mm, non-rotating piston rod. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EUK 20/40
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EUK 20/40 – EUK 20/40 (EMC) Direct assembly cylinder, piston 20mm, stroke 40mm, non-rotating piston rod. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EUK 20/40
• Brand: EMC
• Product: EUK 20/40 (EMC) Direct assembly cylinder, piston 20mm, stroke 40mm, non-rotating piston rod

Trusted by engineers across the UK, this EUK 20/40 (EMC) Direct assembly cylinder, piston 20mm, stroke 40mm, non-rotating piston rod is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
10 to +60 °C

Operating pressure:
max. 7 bar

Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod

Cylinder switch type:
D

Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK Piston diameter [mm] 20 Stroke [mm] 40 Version non-rotating piston rod E (piston rod thread) M 6 G (compressed air port) M 5 Repair sets EU 20 REP A1 [mm] 46 A3 [mm] 75 B [mm] 26 C [mm] 40 D [mm] 8 D2 [mm] 29 E1 [mm] 12,0 E2 [mm] 14,0 G1 [mm] 21,0 G2 [mm] 10,0 G3 [mm] 4,5 G4 [mm] 5,5 H [mm] 9.5 (8.0 deep) H1 [mm] 5,5 H2 [mm] 16 H3 [mm] 9 H4 [mm] 16 J M 5 J1 [mm] 30 J2 [mm] 8 K [mm] 8 K1 [mm] 20 K2 [mm] 16 K3 [mm] 32,0 K4 [mm] 19,8 SW [mm] 6 Weight 250 g / pcs GTIN 4050571872458 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
