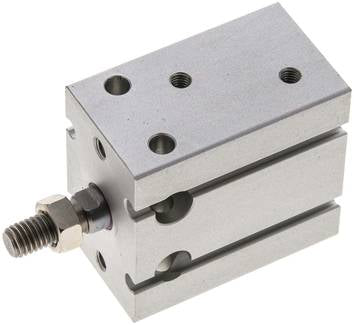

EU 25/5 (EMC) Direct assembly cylinder, piston 25mm, stroke 5mm, standard

Genuine EMC EU 25/5 – EU 25/5 (EMC) Direct assembly cylinder, piston 25mm, stroke 5mm, standard. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EU 25/5
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EU 25/5 – EU 25/5 (EMC) Direct assembly cylinder, piston 25mm, stroke 5mm, standard. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EU 25/5
• Brand: EMC
• Product: EU 25/5 (EMC) Direct assembly cylinder, piston 25mm, stroke 5mm, standard

Trusted by engineers across the UK, this EU 25/5 (EMC) Direct assembly cylinder, piston 25mm, stroke 5mm, standard is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
10 to +60 °C

Operating pressure:
max. 7 bar

Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod

Cylinder switch type:
D

Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK Piston diameter [mm] 25 Stroke [mm] 5 Version Standard E (piston rod thread) M 8 G (compressed air port) M 5 Repair sets EU 25 REP A1 [mm] 50 A2 [mm] 73 B [mm] 32 C [mm] 50 D [mm] 10 D1 [mm] 23 E1 [mm] 15,5 E2 [mm] 18,0 G1 [mm] 23,0 G2 [mm] 10,0 G3 [mm] 4,5 G4 [mm] 6,0 H [mm] 9.5 (9.0 deep) H1 [mm] 5,5 H2 [mm] 20 H3 [mm] 10 H4 [mm] 20 J M 5 J1 [mm] 38 J2 [mm] 8 SW [mm] 8 Weight 250 g / pcs GTIN 4050571872083 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
