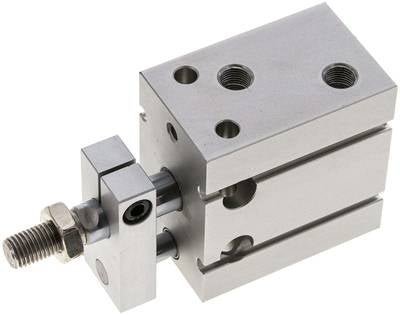

EUK 32/10 (EMC) Direct assembly cylinder, piston 32mm, stroke 10mm, non-rotating piston rod

Genuine EMC EUK 32/10 – EUK 32/10 (EMC) Direct assembly cylinder, piston 32mm, stroke 10mm, non-rotating piston rod. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EUK 32/10
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EUK 32/10 – EUK 32/10 (EMC) Direct assembly cylinder, piston 32mm, stroke 10mm, non-rotating piston rod. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EUK 32/10
• Brand: EMC
• Product: EUK 32/10 (EMC) Direct assembly cylinder, piston 32mm, stroke 10mm, non-rotating piston rod

Trusted by engineers across the UK, this EUK 32/10 (EMC) Direct assembly cylinder, piston 32mm, stroke 10mm, non-rotating piston rod is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
10 to +60 °C

Operating pressure:
max. 7 bar

Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod

Cylinder switch type:
D

Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK Piston diameter [mm] 32 Stroke [mm] 10 Version non-rotating piston rod E (piston rod thread) M 10x1,25 G (compressed air port) G 1/8" Repair sets EU 32 REP A1 [mm] 52 A3 [mm] 94 B [mm] 40 C [mm] 62 D [mm] 12 D2 [mm] 42 E1 [mm] 19,5 E2 [mm] 22,0 G1 [mm] 23,0 G2 [mm] 12,5 G3 [mm] 4,5 G4 [mm] 9,0 H [mm] 11.0 (11.5 deep) H1 [mm] 6,6 H2 [mm] 24 H3 [mm] 11 H4 [mm] 24 J M 6 J1 [mm] 48 J2 [mm] 9 K [mm] 12 K1 [mm] 29 K2 [mm] 24 K3 [mm] 49,0 K4 [mm] 30,8 SW [mm] 10 Weight 480 g / pcs GTIN 4050571872564 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
