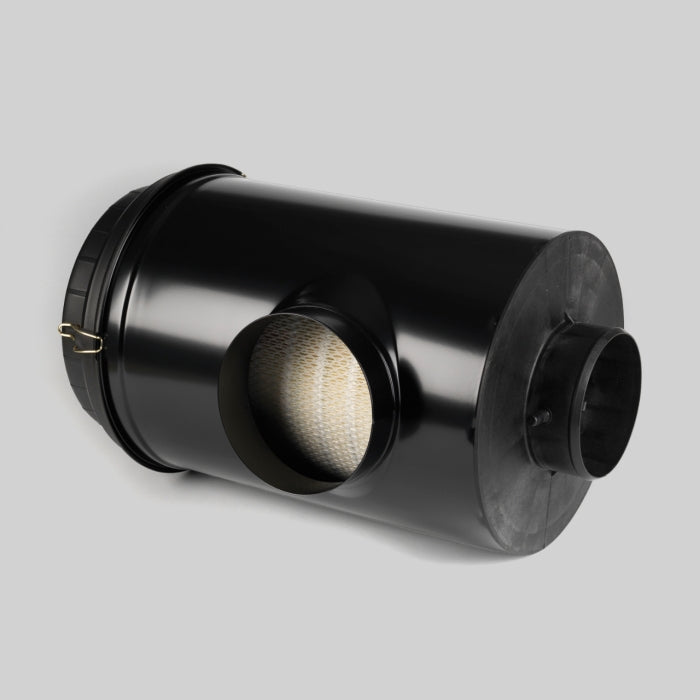

Description
Specifications:
| Outlet Diameter | 101.5 mm (4.00 inch) |
| Inlet Diameter | 114 mm (4.49 inch) |
| Body Diameter Maximum | 259 mm (10.20 inch) |
| Overall Length | 416 mm (16.38 inch) |
| Length | 430 mm (16.93 inch) |
| Body Length | 430 mm (16.93 inch) |
| Inlet Length | 205 mm (8.07 inch) |
| Outlet Length | 52 mm (2.05 inch) |
| Service Clearance | 400 mm (15.75 inch) |
| Rated Flow LR | 10 m³/min (353 cfm) |
| Rated Flow MR | 11 m³/min (388 cfm) |
| Rated Flow HR | 13 m³/min (459 cfm) |
| Family | ERB |
| Inlet Location | 143 mm (5.63 inch) |
