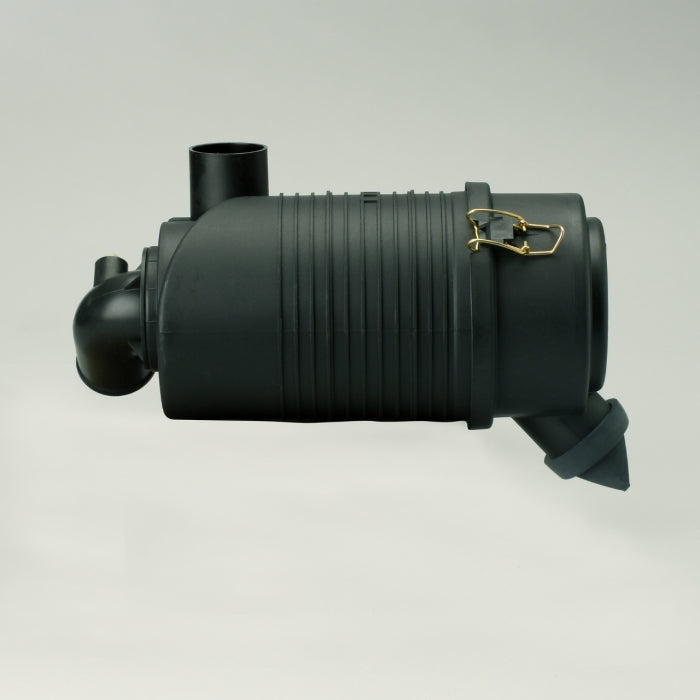

Description
Specifications:
| Outlet Diameter | 50.8 mm (2.00 inch) |
| Inlet Diameter | 50.8 mm (2.00 inch) |
| Body Diameter Maximum | 146 mm (5.75 inch) |
| Overall Length | 329.7 mm (12.98 inch) |
| Body Length | 214.4 mm (8.44 inch) |
| Rated Flow LR | 1.8 m³/min (64 cfm) |
| Rated Flow MR | 2.3 m³/min (81 cfm) |
| Rated Flow HR | 2.6 m³/min (92 cfm) |
| Restriction LR | 14.91 mbar (5.98 inch H2O) |
| Restriction MR | 19.91 mbar (7.99 inch H2O) |
| Restriction HR | 24.91 mbar (10 inch H2O) |
| Style | Radialseal |
| Family | FPG |
| Brand | RadialSeal™ |
