Description

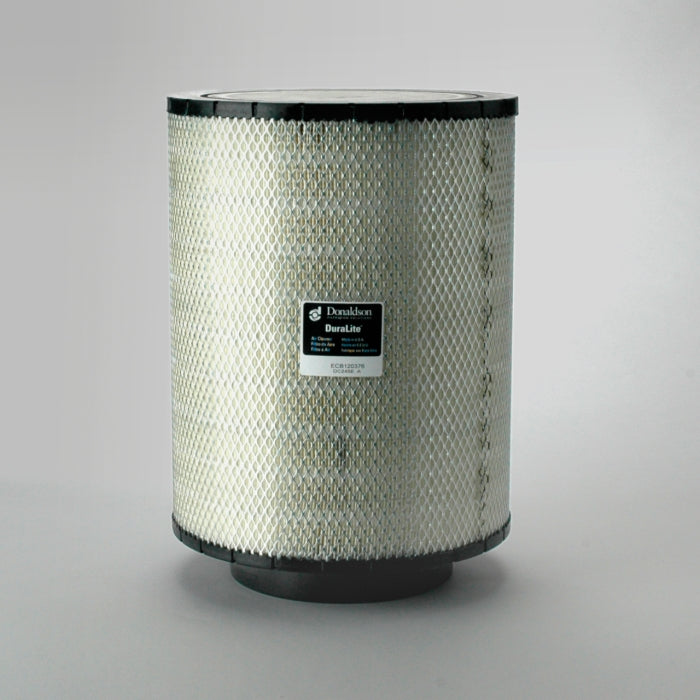

Rugged, lightweight, self-supporting, and completely disposable combination air cleaner and filter.
• Function well under severe pulsation conditions, particularly two- and three-cylinder engines.
• Vibration-resistant media is secured into molded housings of rugged ABS plastic—so they don’t fall apart as other designs might.
• Easy to install, durable, and reliable.
• Completely disposable — acceptable for normal trash pick-up (DuraLite should not be incinerated).
• Function well under severe pulsation conditions, particularly two- and three-cylinder engines.
• Vibration-resistant media is secured into molded housings of rugged ABS plastic—so they don’t fall apart as other designs might.
• Easy to install, durable, and reliable.
• Completely disposable — acceptable for normal trash pick-up (DuraLite should not be incinerated).
Specifications:
| Outlet Diameter | 200 mm (7.87 inch) |
| Body Diameter Maximum | 317.5 mm (12.50 inch) |
| Body Length | 400 mm (15.75 inch) |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 43.9 m³/min (1550 cfm) |
| Rated Flow MR | 52 m³/min (1836 cfm) |
| Rated Flow HR | 60 m³/min (2119 cfm) |
| Restriction LR | 10 mbar (4.02 inch H2O) |
| Restriction MR | 14.91 mbar (5.98 inch H2O) |
| Restriction HR | 19.91 mbar (7.99 inch H2O) |
| Family | ECB |
| Primary Application | DETROIT DIESEL 0180941002 |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
