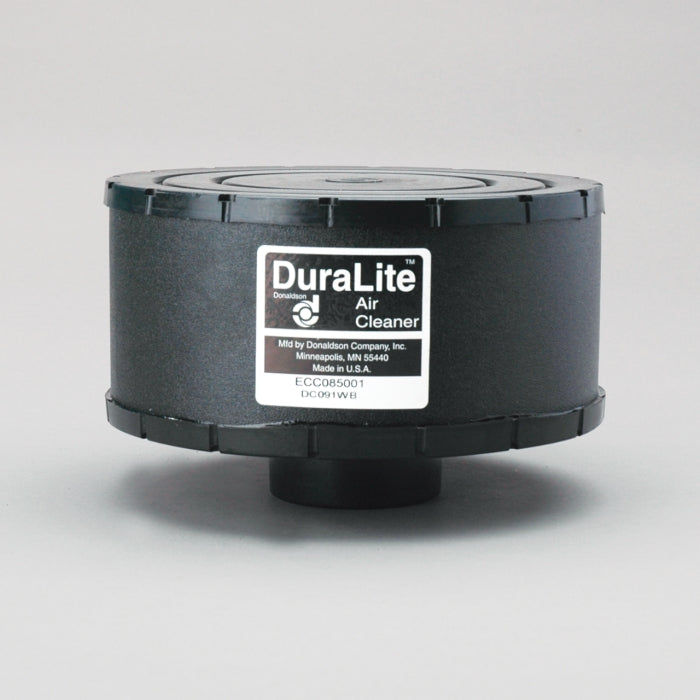

Description
Rugged, lightweight, self-supporting, and completely disposable combination air cleaner and filter.
• Function well under severe pulsation conditions, particularly two- and three-cylinder engines.
• Vibration-resistant media is secured into molded housings of rugged ABS plastic—so they don’t fall apart as other designs might.
• Easy to install, durable, and reliable.
• Completely disposable — acceptable for normal trash pick-up (DuraLite should not be incinerated).
• Function well under severe pulsation conditions, particularly two- and three-cylinder engines.
• Vibration-resistant media is secured into molded housings of rugged ABS plastic—so they don’t fall apart as other designs might.
• Easy to install, durable, and reliable.
• Completely disposable — acceptable for normal trash pick-up (DuraLite should not be incinerated).
Specifications:
| Outlet Diameter | 63.5 mm (2.50 inch) |
| Body Diameter Maximum | 215.9 mm (8.50 inch) |
| Body Length | 101.6 mm (4.00 inch) |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 3.2 m³/min (113 cfm) |
| Rated Flow MR | 4.1 m³/min (145 cfm) |
| Rated Flow HR | 4.8 m³/min (170 cfm) |
| Restriction LR | 10 mbar (4.02 inch H2O) |
| Restriction MR | 14.91 mbar (5.98 inch H2O) |
| Restriction HR | 19.91 mbar (7.99 inch H2O) |
| Family | ECC |
| Primary Application | BRODERSON 60012047 |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
| Media Type | Cellulose |
