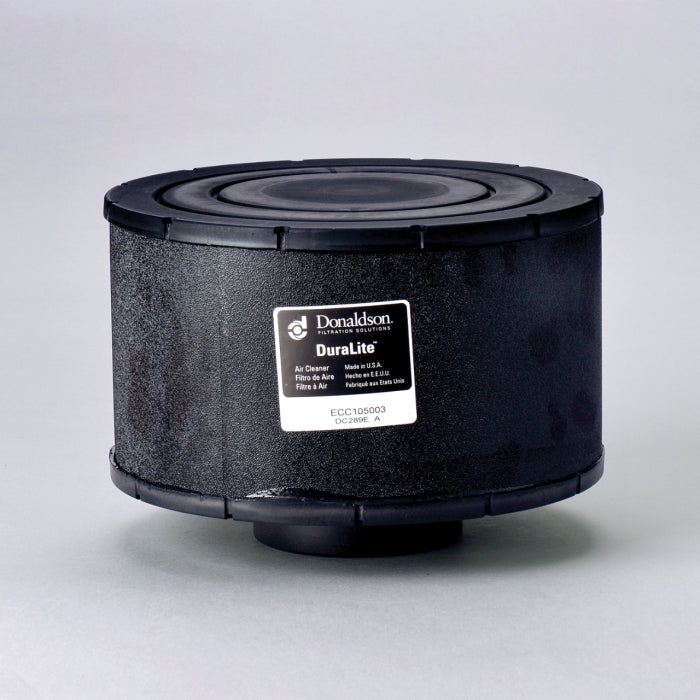

Donaldson Air Filter, Primary Duralite C105003

Rugged, lightweight, self-supporting, and completely disposable combination air cleaner and filter.
• Function well under severe pulsation conditions, particularly two- and three-cylinder engines.
• Vibration-resistant media is secured into molded housings of rugged ABS plastic—so they don’t fall apart as other designs might.
• Easy to install, durable, and reliable.
• Completely disposable — acceptable for normal trash pick-up (DuraLite should not be incinerated).

Specifications:

Outlet Diameter	99.82 mm (3.93 inch)
Body Diameter Maximum	266.7 mm (10.50 inch)
Body Length	152.4 mm (6.00 inch)
Efficiency	99.9
Efficiency Test Std	ISO 5011
Rated Flow LR	9.2 m³/min (325 cfm)
Rated Flow MR	11.3 m³/min (399 cfm)
Rated Flow HR	13.6 m³/min (480 cfm)
Restriction LR	10 mbar (4.02 inch H2O)
Restriction MR	14.91 mbar (5.98 inch H2O)
Restriction HR	19.91 mbar (7.99 inch H2O)
Family	ECC
Primary Application	LEROI 438673
Type	Primary
Style	Round
Brand	DuraLite™
Media Type	Cellulose
