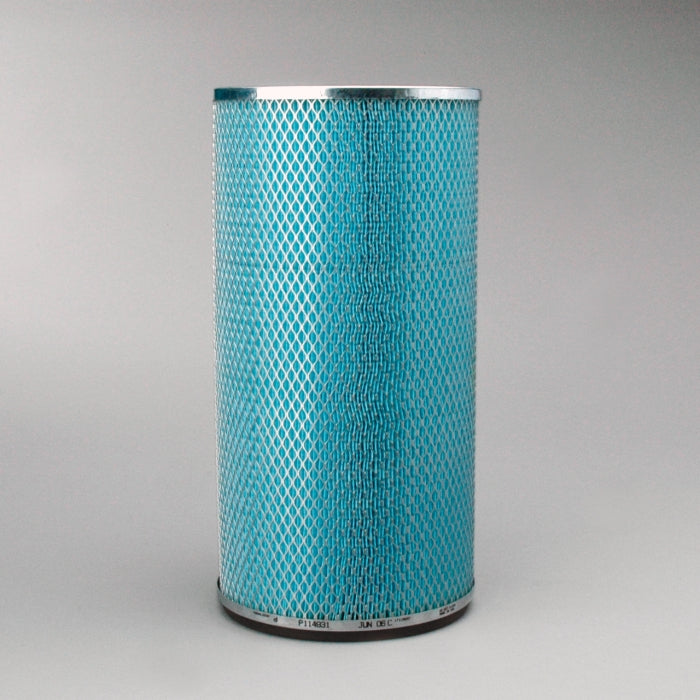

Donaldson Air Filter, Safety P114931
Product details
Product Description
Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing.
• Serve as a backup filter in case of primary filter damage or improper installation.
• Prevent contaminants from entering the clean side of the air intake system during primary filter servicing.
• Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue.
• Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter.
• Serve as a backup filter in case of primary filter damage or improper installation.
• Prevent contaminants from entering the clean side of the air intake system during primary filter servicing.
• Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue.
• Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter.
Specifications:
| Overall Length | 432.9 mm (17.04 inch) |
| Outer Diameter | 219.96 mm (8.66 inch) |
| Inner Diameter | 179.2 mm (7.06 inch) |
| Length | 423.2 mm (16.66 inch) |
| Gasket ID | 190.5 mm (7.50 inch) |
| Efficiency | 99.6 |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 36 m³/min (1271 cfm) |
| Rated Flow HR | 23 m³/min (812 cfm) |
| Family | STG |
| Primary Application | DONALDSON STG16 |
| Type | Safety |
| Style | Round |
| Media Type | Safety |
